| Model No. | FP-4 |
| Max Lifting Capacity | 3000-5000kgs |
| Usable Platform width | Customized |
| Overall Height | Customized |
| Overall Length | Customized |
| Overall Width | Customized |
| Power Supply/Motor Capacity | 380V, 50Hz, 3Ph, 4-5.5Kw |
| Pump station Pressure | 18Mpa |
| Lock Release | Electric Release |
| Drive Mode | Hydraulic Drive |

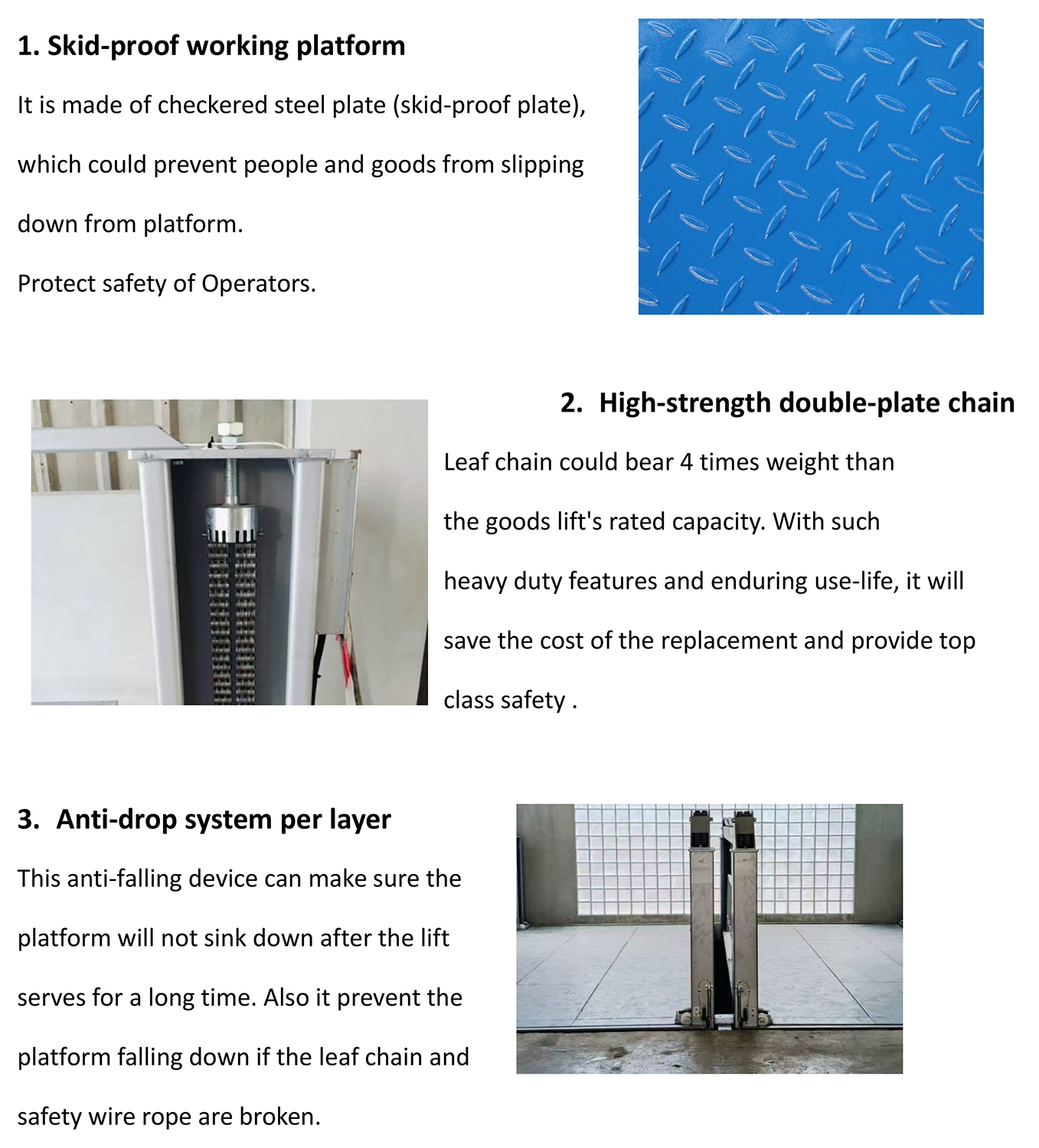

It is made of checkered steel plate (skid-proof plate), which could prevent people and goods from slipping down from platform. Protect safety of Operators.
Leaf chain could bear 4 times weight than the goods lift's rated capacity. With such heavy duty features and enduring use-life, it will save the cost of the replacement and provide top class safety.
This anti-falling device can make sure the platform will not sink down after the lift serves for a long time. Also it prevent the platform falling down if the leaf chain and safety wire rope are broken.

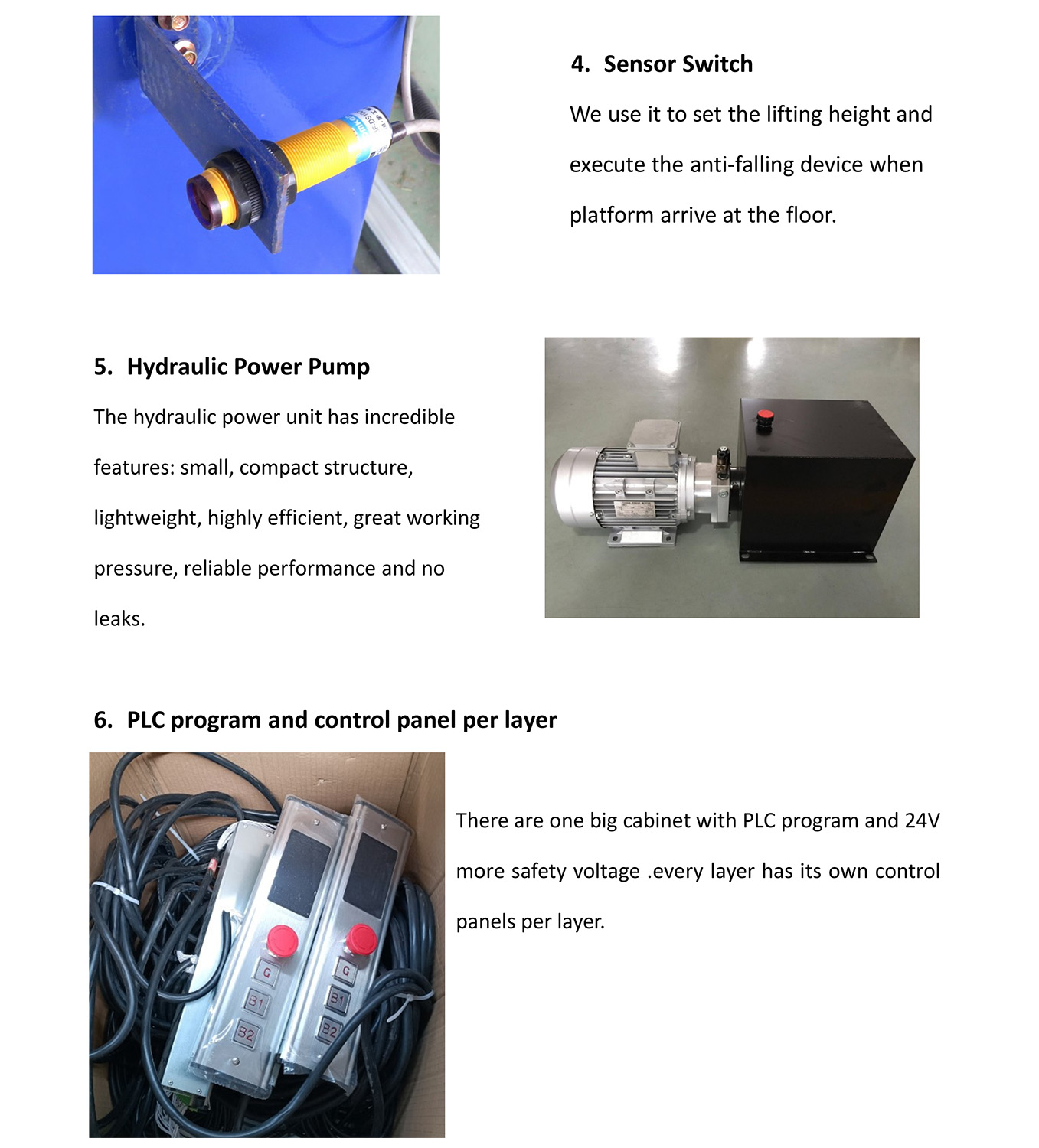

We use it to set the lifting height and execute the anti-falling device when platform arrive at the floor.
The hydraulic power unit has incredible features: small, compact structure, lightweight, highly efficient, great working pressure, reliable performance and no leaks.
There are one big cabinet with PLC program and 24V safety voltage .there are control panels per layer.

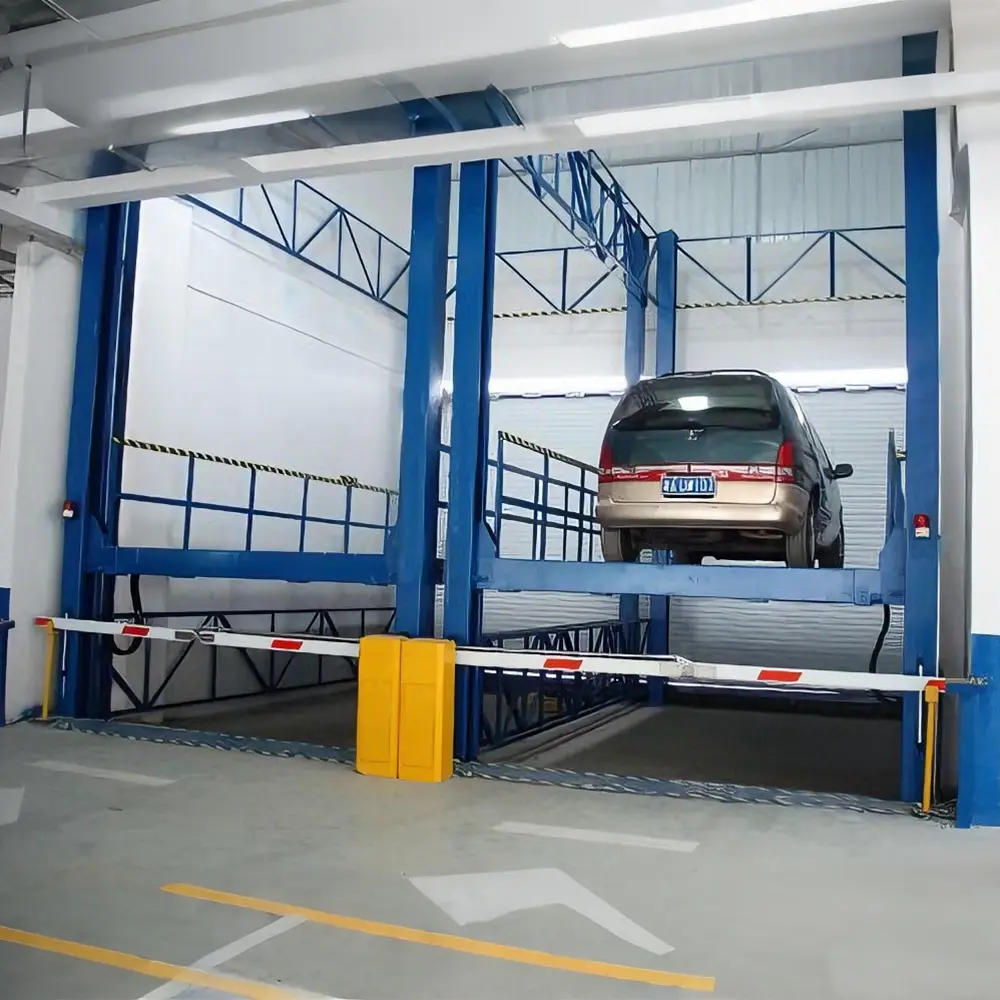

Enables safe vertical transfer of vehicles between service floors. Its skid-proof platform, high-strength chain, and anti-drop system ensure full safety, while PLC multi-floor control and sensor positioning boost maintenance efficiency.

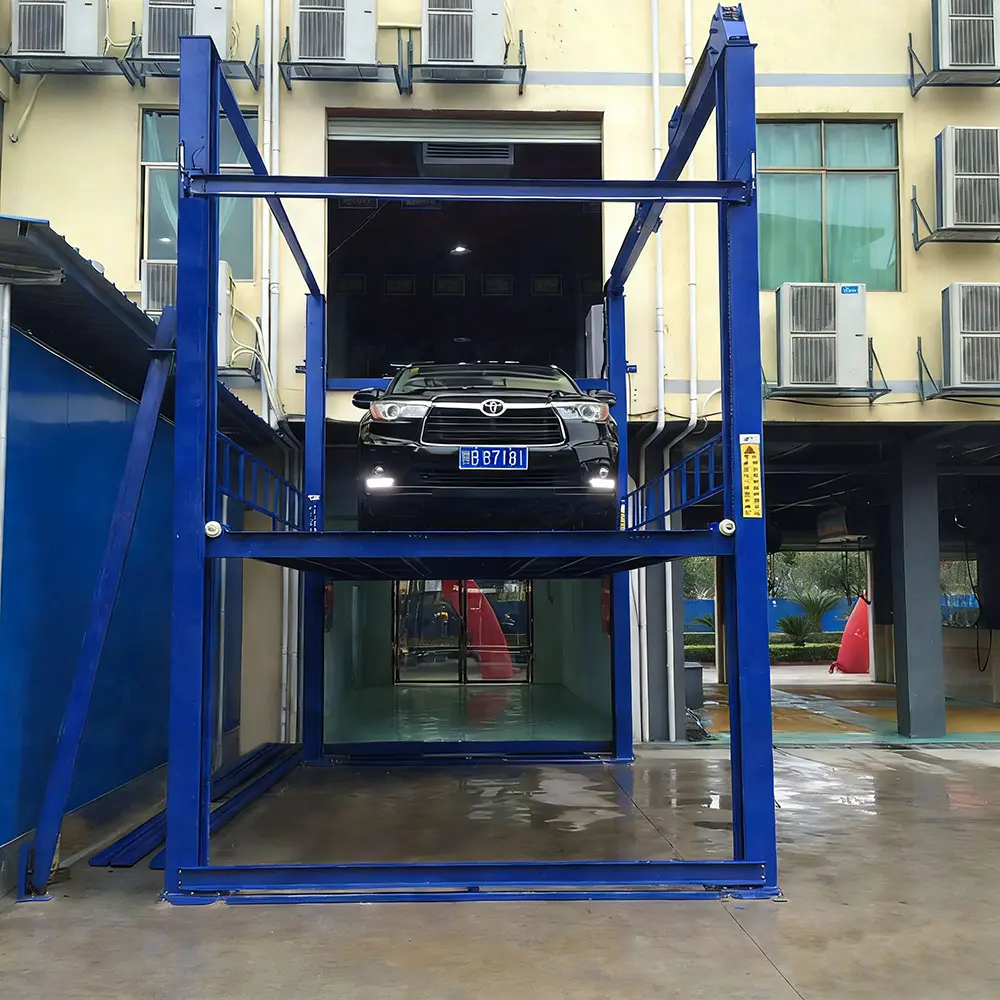

Solves urban parking shortages with vertical vehicle transfer. The anti-drop system and leak-free hydraulic pump deliver stable, low-noise operation, and the skid-proof platform prevents slippage, ideal for commercial and residential buildings.

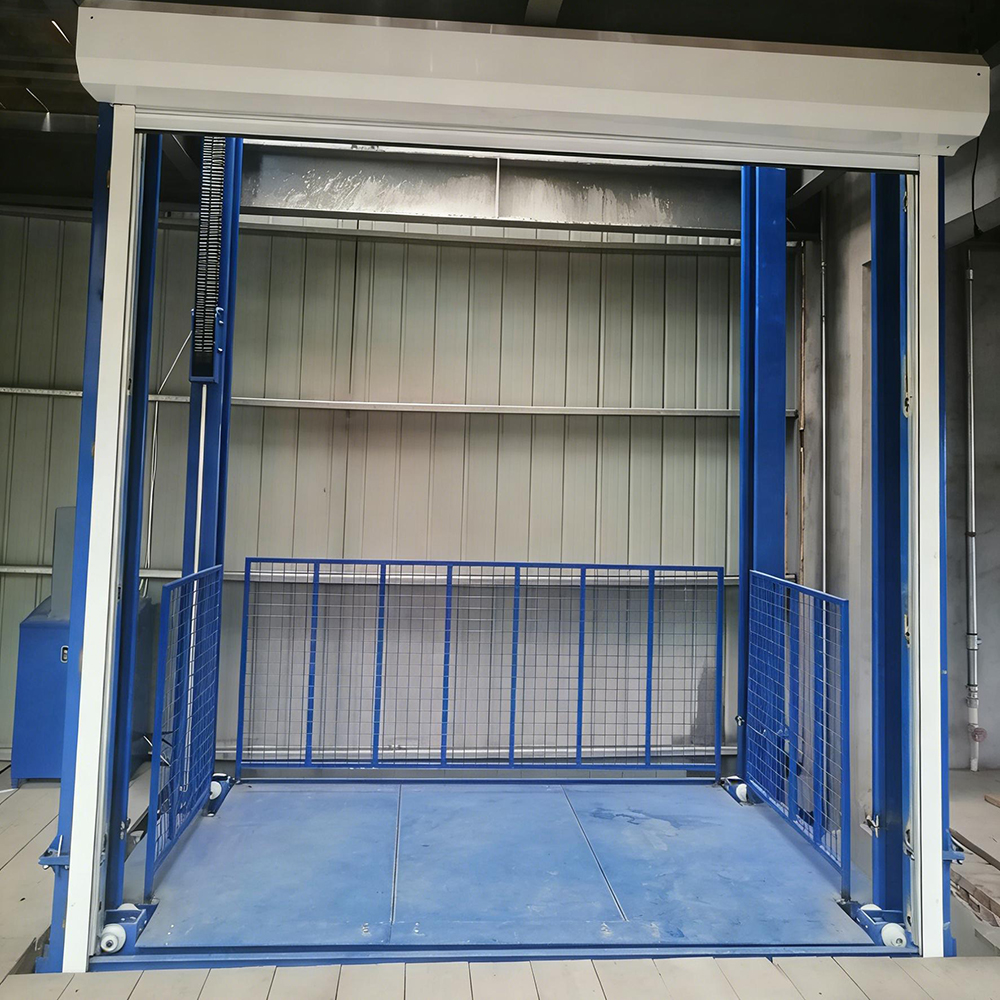

Transports heavy goods, pallets, and small vehicles between warehouse floors. High-load chains and anti-falling devices guarantee safety, while the PLC system and efficient hydraulic unit improve loading/unloading efficiency.
Moves exhibition vehicles between show floors smoothly and quietly. Precise sensor leveling ensures accurate parking, and multi-floor controls enhance showroom efficiency and customer experience.
Equipped with anti-drop air locks on each floor, high-strength 4-times load-bearing leaf chains, and safety sensors to fully prevent platform falling or sinking.
Adopts a high-precision, leak-proof hydraulic power unit and adjustable balance structure for smooth, stable lifting with low failure rate.
PLC control system with 24V safe voltage and independent control panels on each floor, plus automatic height positioning via sensor switches.
One-piece formed columns, skid-proof checkered steel platform, and heavy-duty construction ensure long service life and high strength.
Perfect for vertical transfer of vehicles and goods between floors, widely used in 4S shops, parking garages, warehouses and maintenance centers.
High configuration at a competitive price with low maintenance cost, delivering great value and long-term economic benefits.
The FP-4 has a maximum load capacity of 5000 kg, suitable for lifting vehicles and heavy goods. Its lifting range can be customized up to 12 meters, with multiple stop positions available to meet different height requirements.

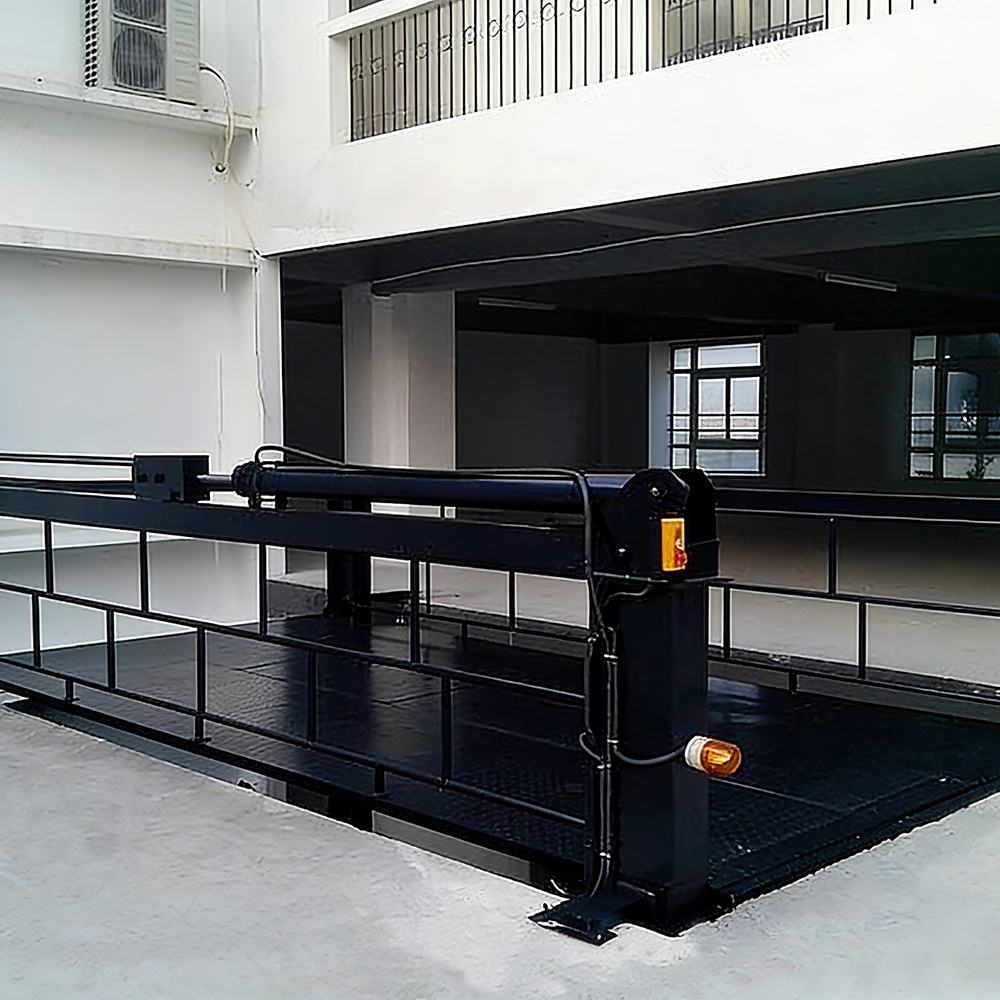

A foundation pit is optional. If no pit is available, drive-on ramps can be equipped instead to allow smooth vehicle access.
The platform uses a dual-cylinder direct hydraulic drive system to ensure high precision and stable running. It also features an automatic stop function when the operator releases the push button, and hydraulic overload protection is available as an option for enhanced safety.
The platform adopts a pre-assembled structure, which greatly reduces on-site installation work. Normally, professional technicians can complete installation efficiently, minimizing downtime and getting your equipment into service as soon as possible.
Yes, we offer flexible customization options. Remote control is available as an optional extra for easier operation. Dual decks can also be added according to your needs to maximize parking or goods storage capacity.
The lift is equipped with a high-strength double-plate chain system designed to support up to 4 times the rated capacity, alongside an anti-drop air lock system on each layer and safety sensor switches to prevent platform sinking or falling.
