CE Certification Home Garage Hydraulic Underground Inclined Auto Elevator with Pit Vehicle Parking System Manufacturers, Products

1. Maximize Parking Space

Doubles parking capacity in 2 original spots, ideal for pit installation to solve space shortage efficiently.

2. Easy Access Tilt Platform

Tiltable upper platform enables direct access to lower vehicles without repositioning, user-friendly operation.

3. Robust & Safe Construction

High-strength steel build with multiple safety protections, meets international standards for long-term heavy use.

4. Flush Pit-Mounted Design

Low-profile pit installation keeps the platform flush with ground when lowered, seamlessly integrates with building aesthetics.

Send Inquiry

Product Description

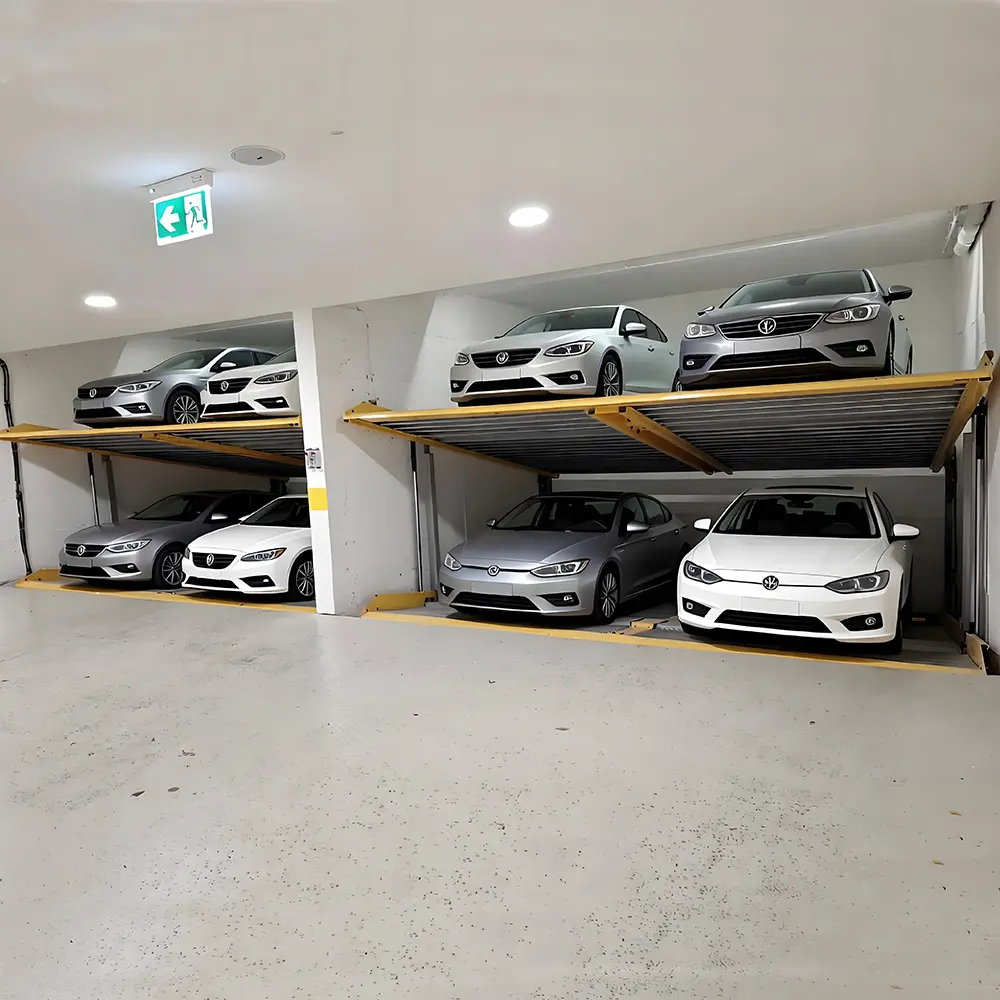

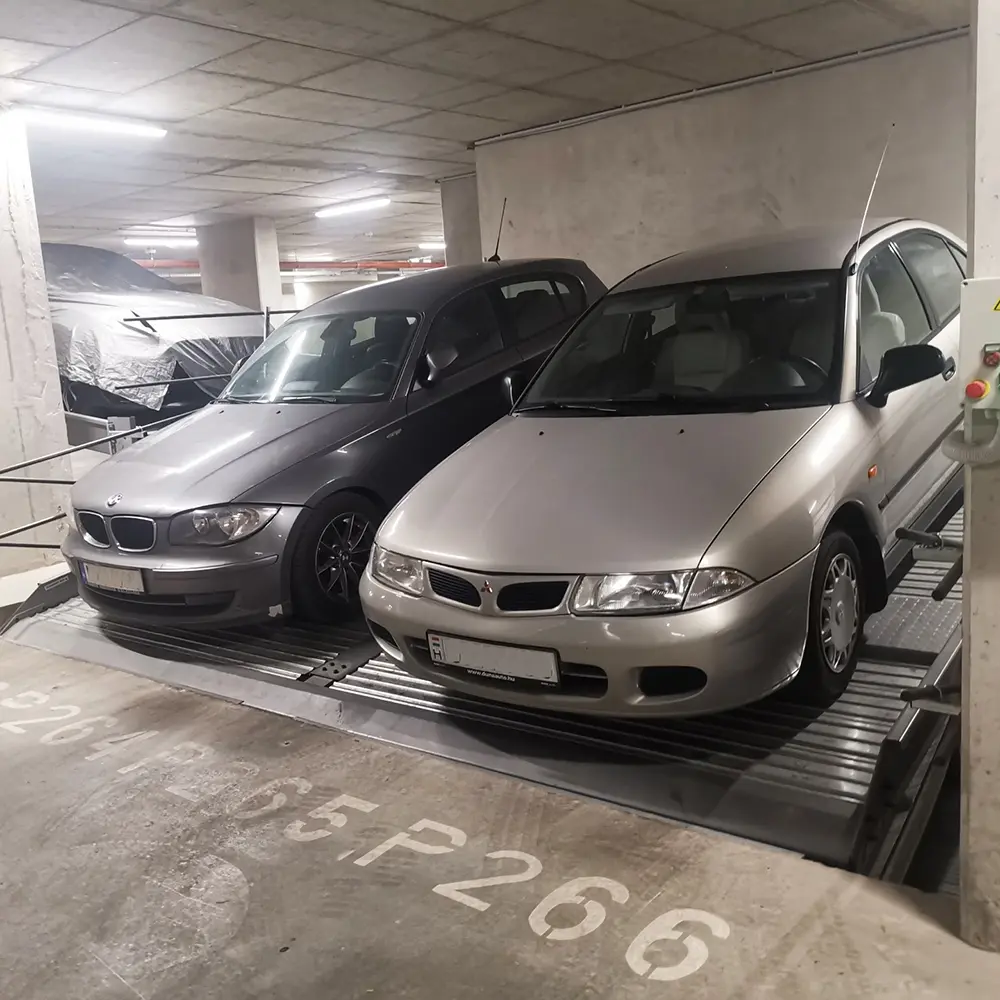

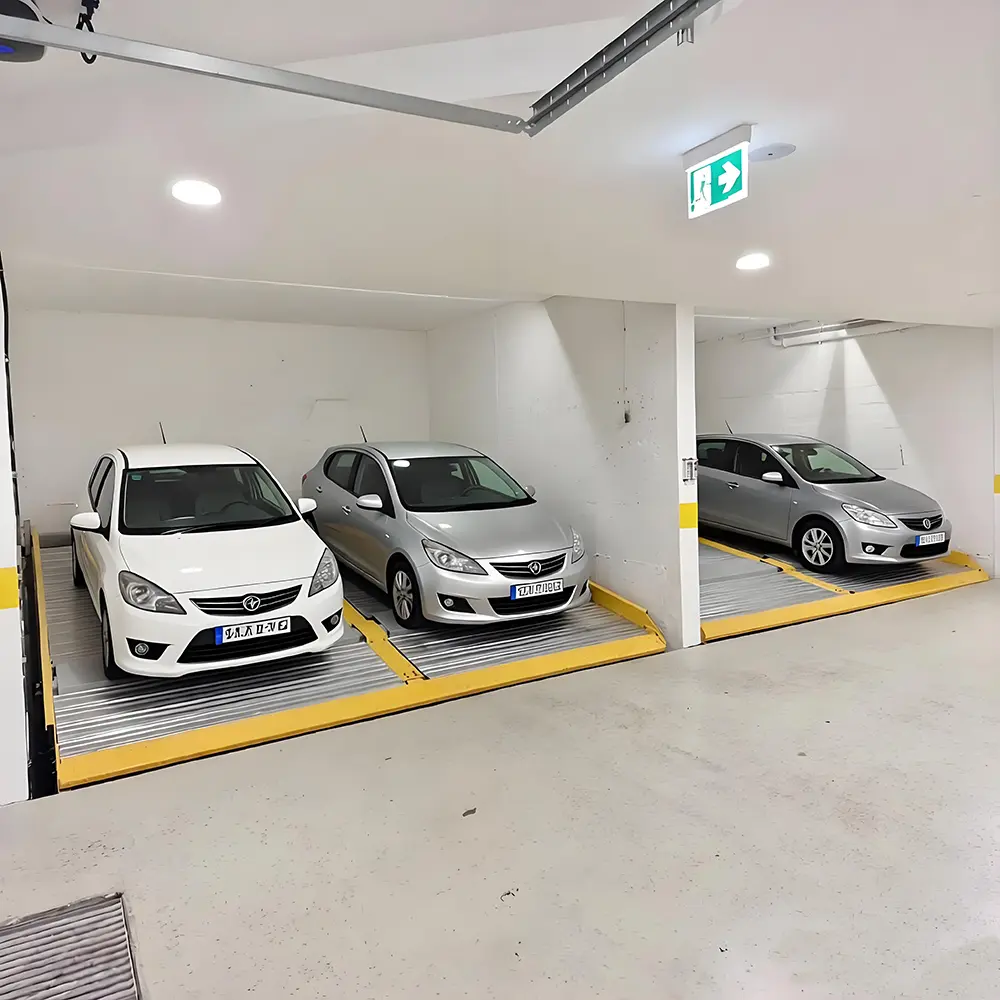

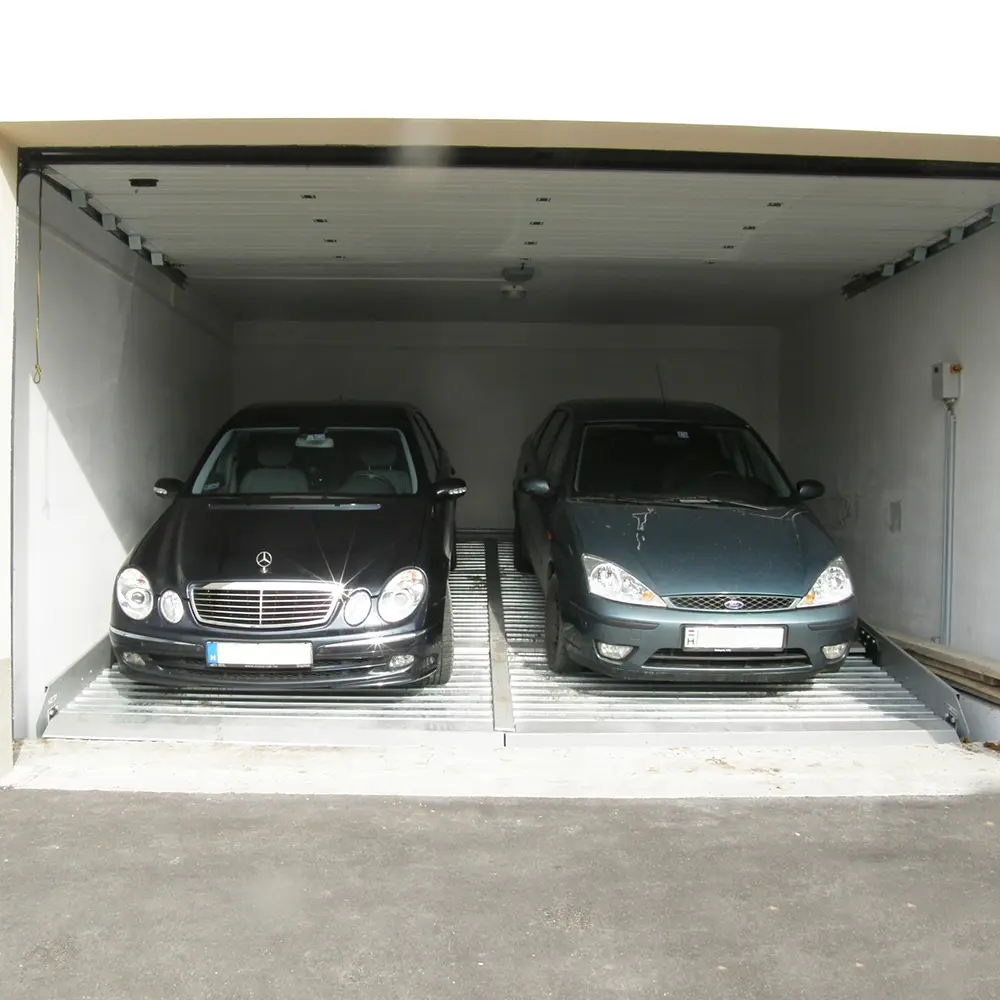

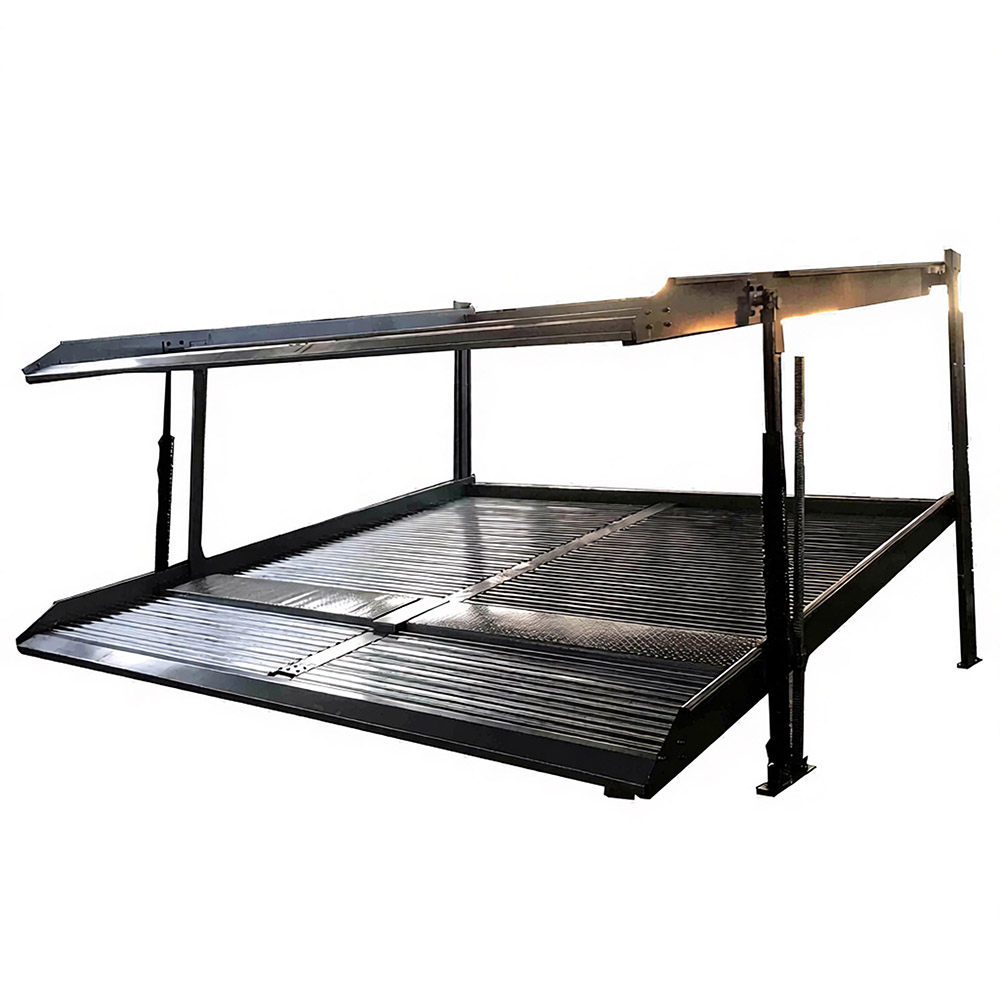

The CPT4 pit parking lift provides a twolevel parking solution. With an innovative tilted platform design that requires less pit depth, it can comfortably accommodate four vehicles. To retrieve the upper vehicle, there is no need to move the lower vehicle. This system can be easily installed in basements or pits, effectively maximizing ground space utilization.

Product Specifications

Model No.	CPT-4
Lifting Capacity	4000kgs
Lifting Height	1750mm
Usable Platform width	4502mm
Overall Height	4580mm
Overall Length	5300mm
Overall Width	4900mm
Power Supply/Motor Capacity	380V, 50Hz / 60Hz, 3Ph, 5.5Kw
Lock Release	Electric Release
Drive Mode	Hydraulic Drive + Chain

Product Features

★1. Space-saving double-level design

Double-deck space-saving structure, 2 original parking spots can accommodate 4 vehicles, making full use of underground/pit space.

★2. Inclined platform for easy vehicle access

Tilted platform design allows direct access to lower vehicles without moving upper ones.

★3. Dual hydraulic + chain drive for stable lifting

Dual hydraulic cylinder + chain drive system ensures smooth lifting, strong power and reliable operation.

★4. Galvanized anti-skid platform for safety & durability

Galvanized anti-slid checkered plate platform with high strength, rust resistance and skid resistance, safe and durable for long-term use.

★5. Comprehensive safety protection system

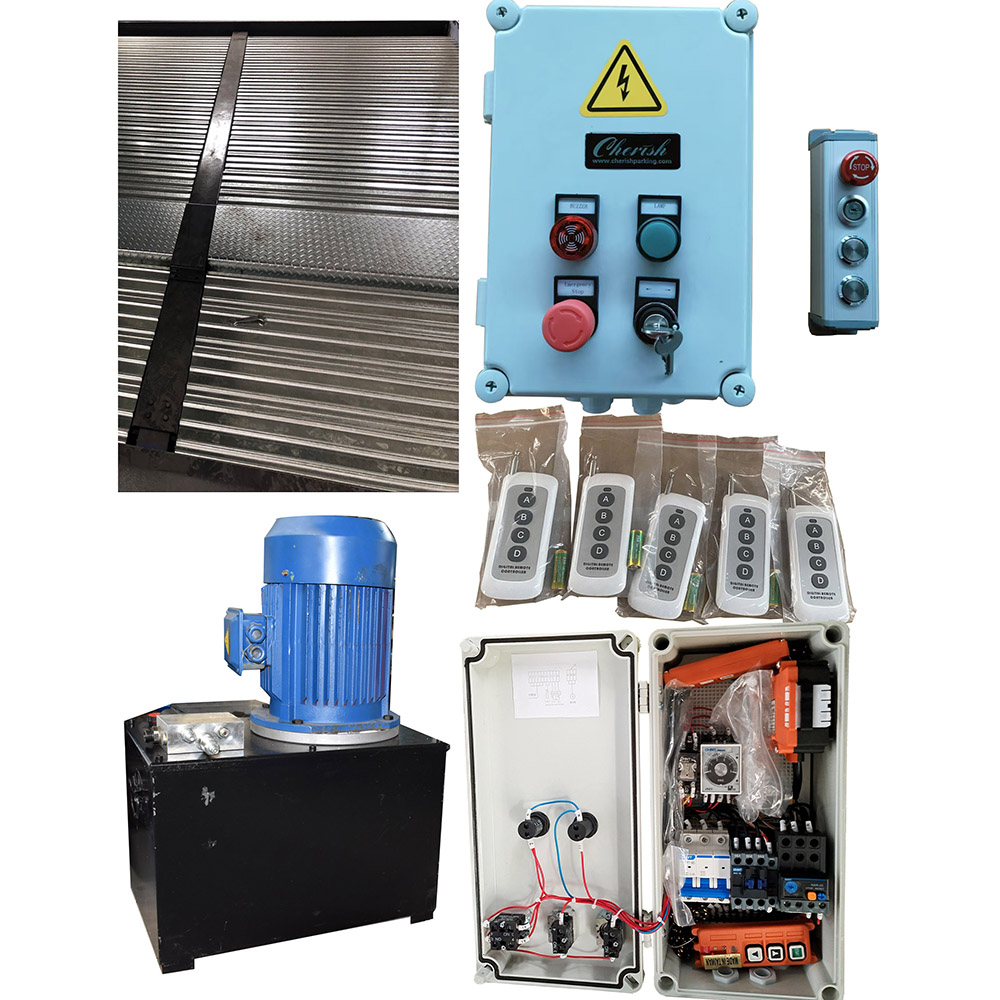

Equipped with multiple safety devices including key switch, emergency stop, anti-fall hooks, photoelectric protection and buzzer alarm.

★6. Ideal for low-ceiling basements & pit installation

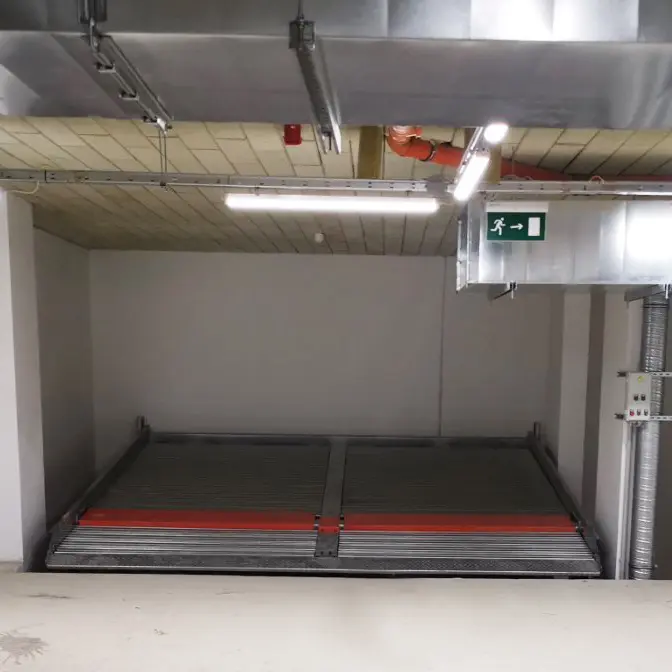

Suitable for low-headroom basements and pit installation, the platform is flush with the ground when lowered, occupying no extra space.

Product Applications

Residential Villas & Luxury Homes

Ideal for private villas with limited space, it doubles parking capacity in limited areas while maintaining a sleek, unobtrusive appearance.

Commercial Office Buildings & Shopping Malls

Solves parking shortages in high-demand urban commercial complexes, maximizing parking space efficiency in underground parking lots.

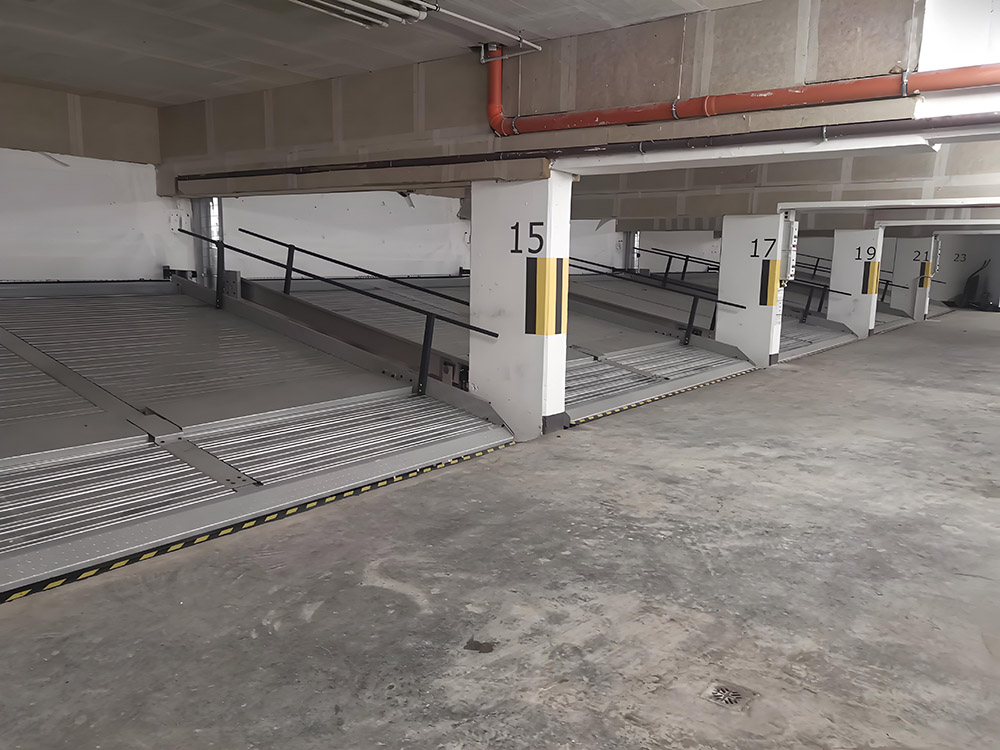

Underground Parking Garages

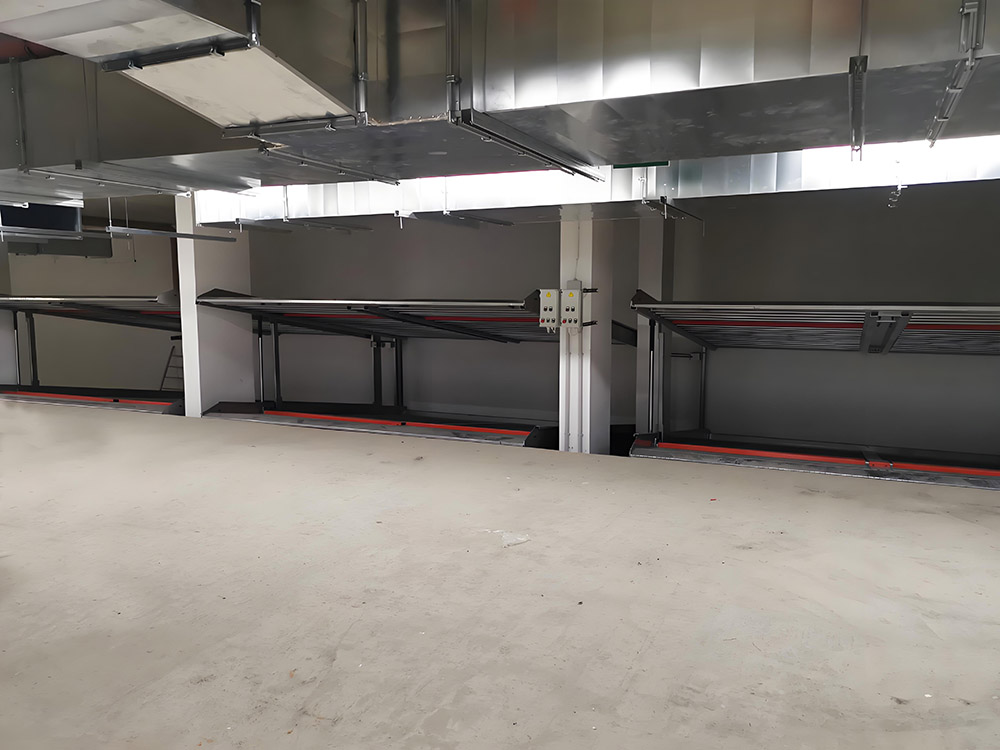

Perfect for retrofitting existing underground garages, increasing parking capacity without expanding the overall area.

Hotel & Resort Facilities

Meets the parking needs of high-end hotels and resorts, providing convenient and space-saving vehicle storage for guests.

Industrial Workshops & Logistics Centers

Suitable for storing vehicles and equipment in industrial settings, optimizing space utilization in workshop areas.

Municipal Public Parking Projects

Widely used in public parking renovation projects, offering a cost-effective solution to urban parking pressure.

Why Choose Pit Parking Lift?

Maximize Parking Capacity

Doubles parking space in 2 original spots, turning limited ground/pit area into 4 usable parking bays to solve parking shortage efficiently.

Cost-Effective Solution

Far lower investment than expanding parking lots or building new structures, with minimal maintenance and long service life for maximum ROI.

User-Friendly Operation

Inclined upper platform enables direct access to lower vehicles without repositioning, simple hydraulic control for easy, time-saving use.

Robust Safety & Durability

High-strength steel structure with full safety protections (anti-fall, overload, emergency stop) and galvanized anti-skid platform, built for heavy daily use.

Seamless Space Integration

Pit-mounted flush design fits perfectly in low-ceiling basements, villas and garages, no extra above-ground space occupation, preserving building aesthetics.

Versatile Application

Suitable for residential, commercial, industrial and public parking scenarios, adaptable to various pit sizes and building structures.

Frequently Asked Questions

Q What is the lifting capacity of the CPT-4 pit parking lift?

The CPT-4 features a high lifting capacity of 4000kgs, which allows it to comfortably and safely accommodate up to four vehicles.

Q Do I need to move the lower vehicle to retrieve the upper vehicle?

No, the CPT-4 utilizes an innovative tilted platform design that requires less pit depth and allows you to access or retrieve vehicles independently without needing to move the lower vehicle.

Q What are the power supply requirements for this lift?

The CPT-4 pit parking lift operates on a standard power supply of 380V, 50Hz / 60Hz, 3-Phase, and is equipped with a 5.5Kw motor.

Q What safety mechanisms are built into the system?

It features a comprehensive safety protection system, including a key switch, emergency stop button, anti-fall mechanical hooks, photoelectric sensors, and warning buzzers to prevent accidents.

Q Is the platform durable and safe against slipping?

Yes, the lift is equipped with a galvanized anti-skid checkered plate platform, providing high strength, rust resistance, and slip resistance for safe, long-term operation.

Q Where is the CPT-4 parking lift typically installed?

This system is ideal for low-ceiling basements, pit installations, residential villas, commercial complexes, shopping malls, hotels, and municipal public parking areas.
