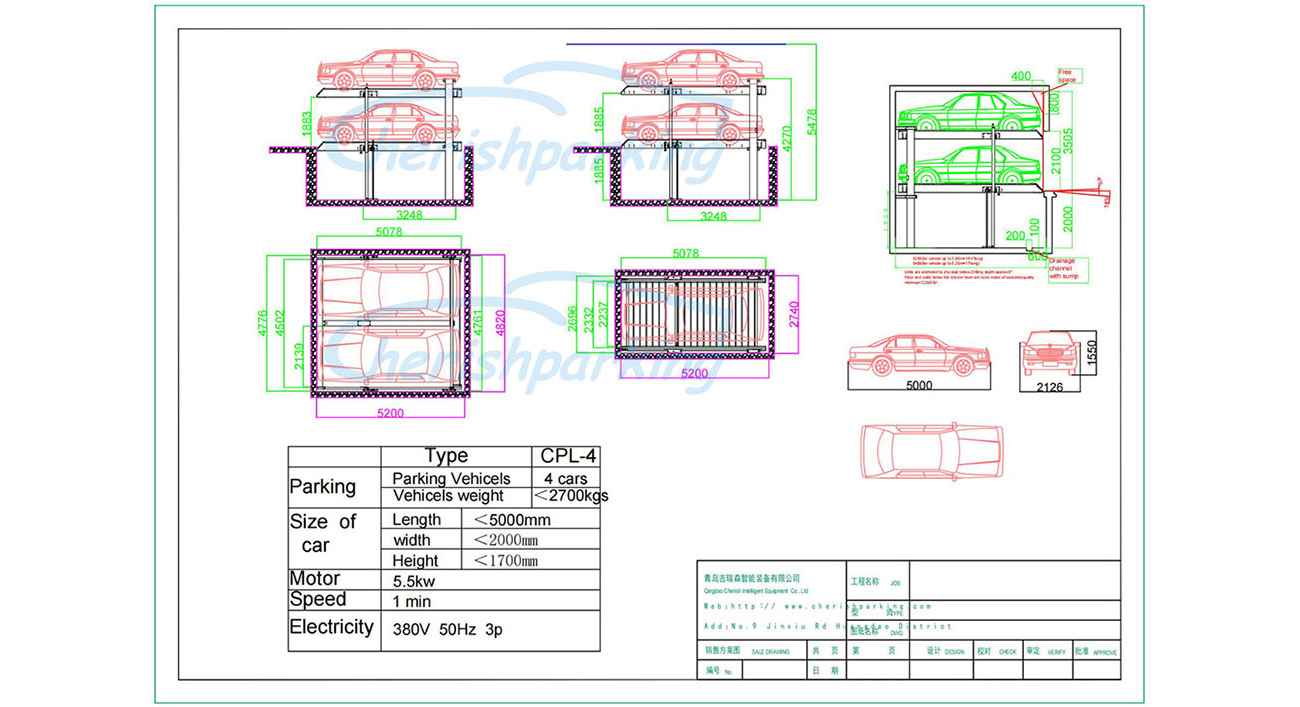

| Parameter | Specification Details |
|---|---|
| Model No. | CPL-4 |
| Lifting Capacity | 4000kgs |
| Lifting Height | 1885mm |
| Usable Platform width | 4502mm |
| Overall Height | 4270mm |
| Overall Length | 5078mm |
| Overall Width | 4776mm |
| Power Supply/Motor Capacity | 380V, 50Hz / 60Hz, 3Ph, 5.5Kw |
| Lock Release | Electric Release |
| Drive Mode | Hydraulic Drive + Chain |

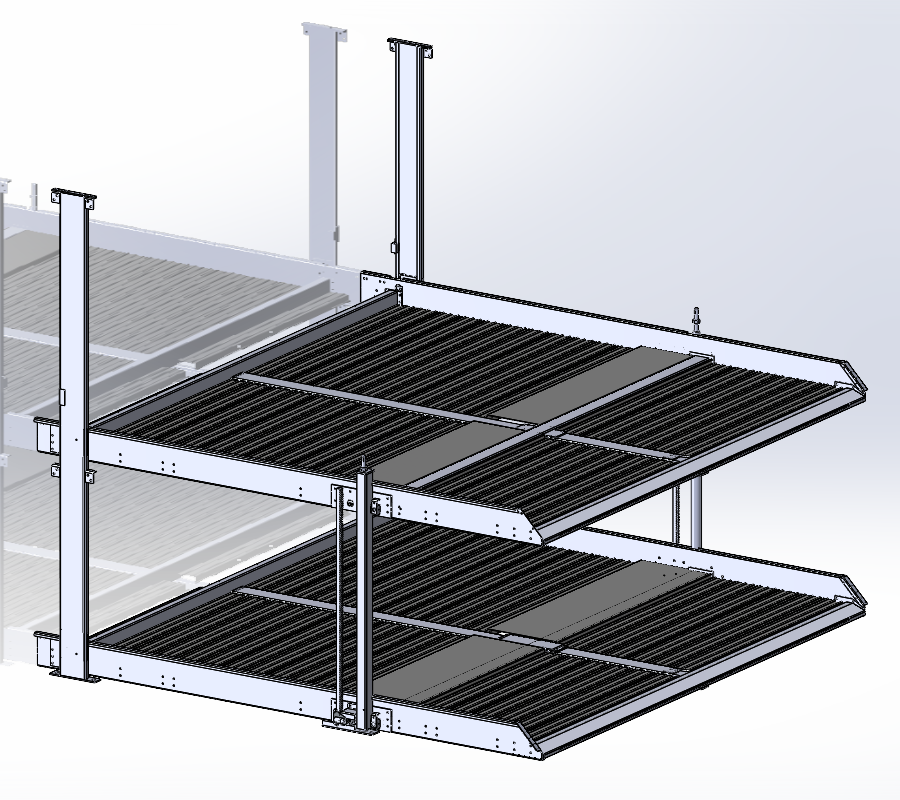

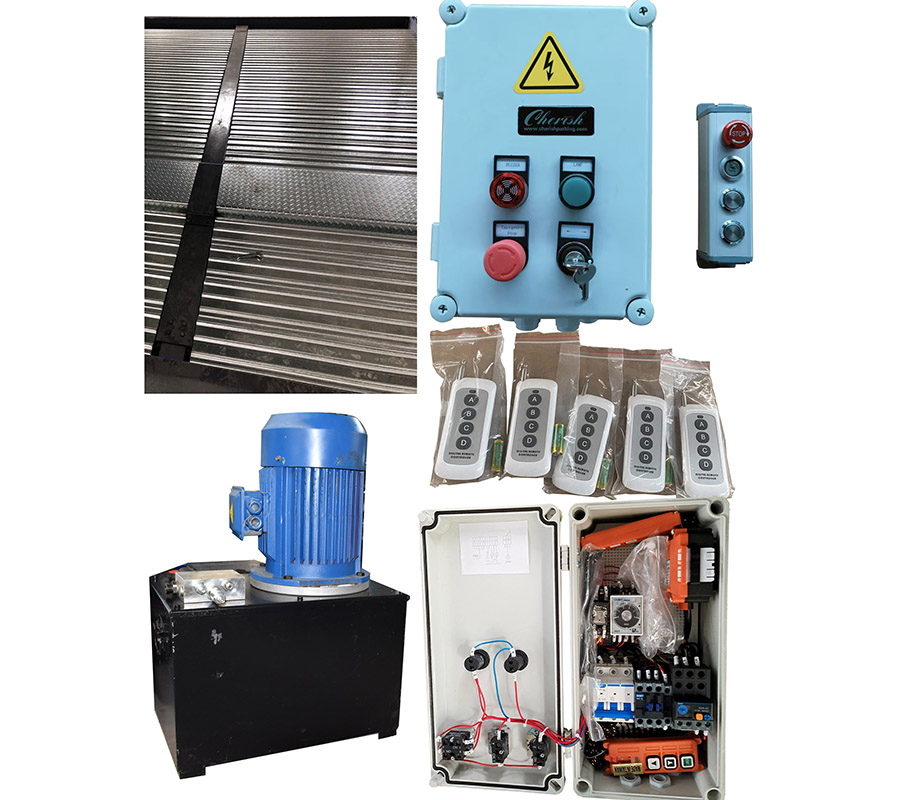

Directly driven by dual master-slave hydraulic lifting cylinders, equipped with an independent hydraulic power unit and control panel for stable operation.
Supports a load-bearing capacity of up to 2000kg per vehicle, compatible with all common vehicle models.
Controlled by an electric key switch with automatic shut-off when released, ensuring high safety and simple operation.
A single platform can hold up to 4 vehicles, ideal for standalone parking scenarios.
All levels support horizontal access for easy entry/exit; the platform descends by gravity without motor drive, cutting operating costs.
Professional packaging ensures intact delivery, and compact package size simplifies unloading and handling.

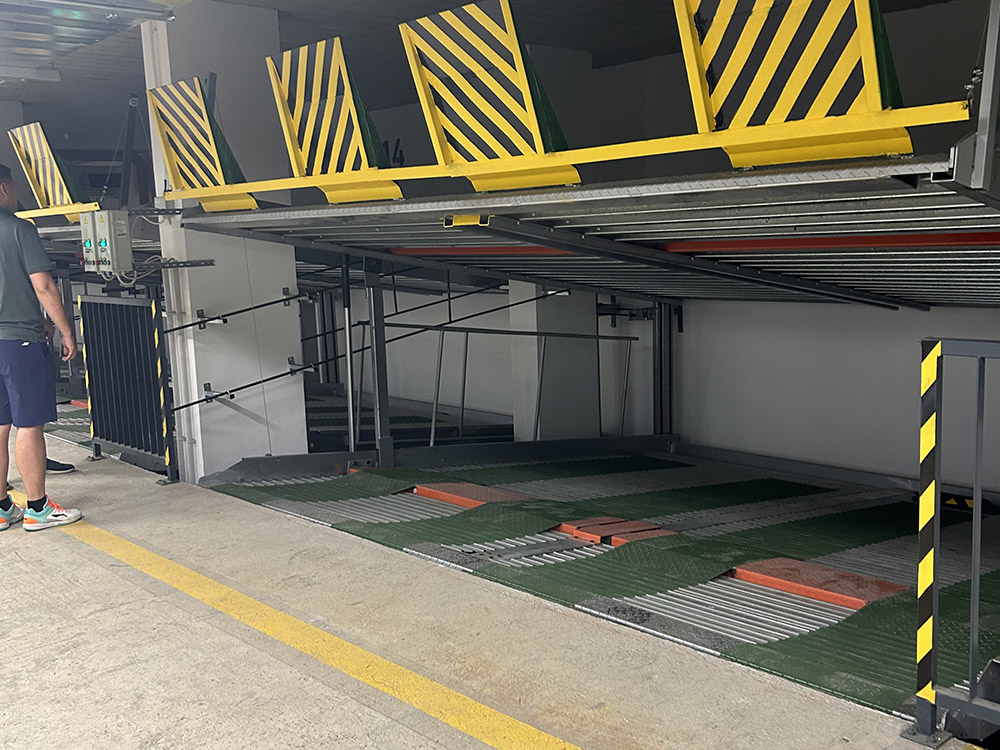

It serves as a core solution for basements or parking areas in residential districts and commercial complexes. It effectively addresses the shortage of parking spaces for households with multiple cars and expands parking capacity significantly in limited space, enhancing supporting services for both residents and businesses.
Widely applicable to hospitals, government service centers, banks and other public institutions. It efficiently handles rapid vehicle turnover during peak hours at hospitals and ensures orderly parking for vehicles in areas with limited surrounding space.
Suitable for car 4S stores and vehicle inspection stations to manage display vehicles and inventory, saving significant space in exhibition halls and warehouses. It also fits internal parking lots of enterprises, factories and parks, resolving centralized parking difficulties during employee commutes.
Thanks to its flexible installation in basements or pits, it is ideal for retrofitting underground garages of old communities and optimizing underground spaces of shopping malls. Its independent structural design also suits underground planning of new construction projects, maximizing the retention of ground space.

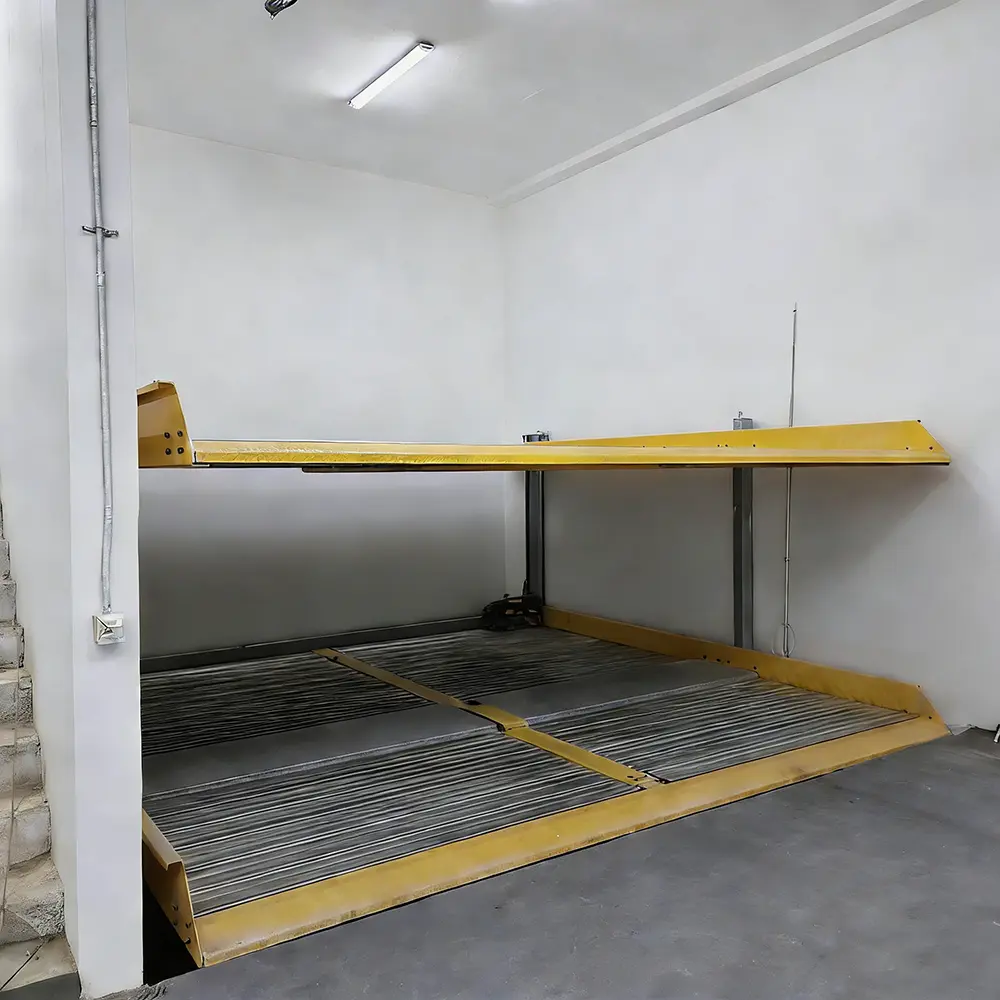

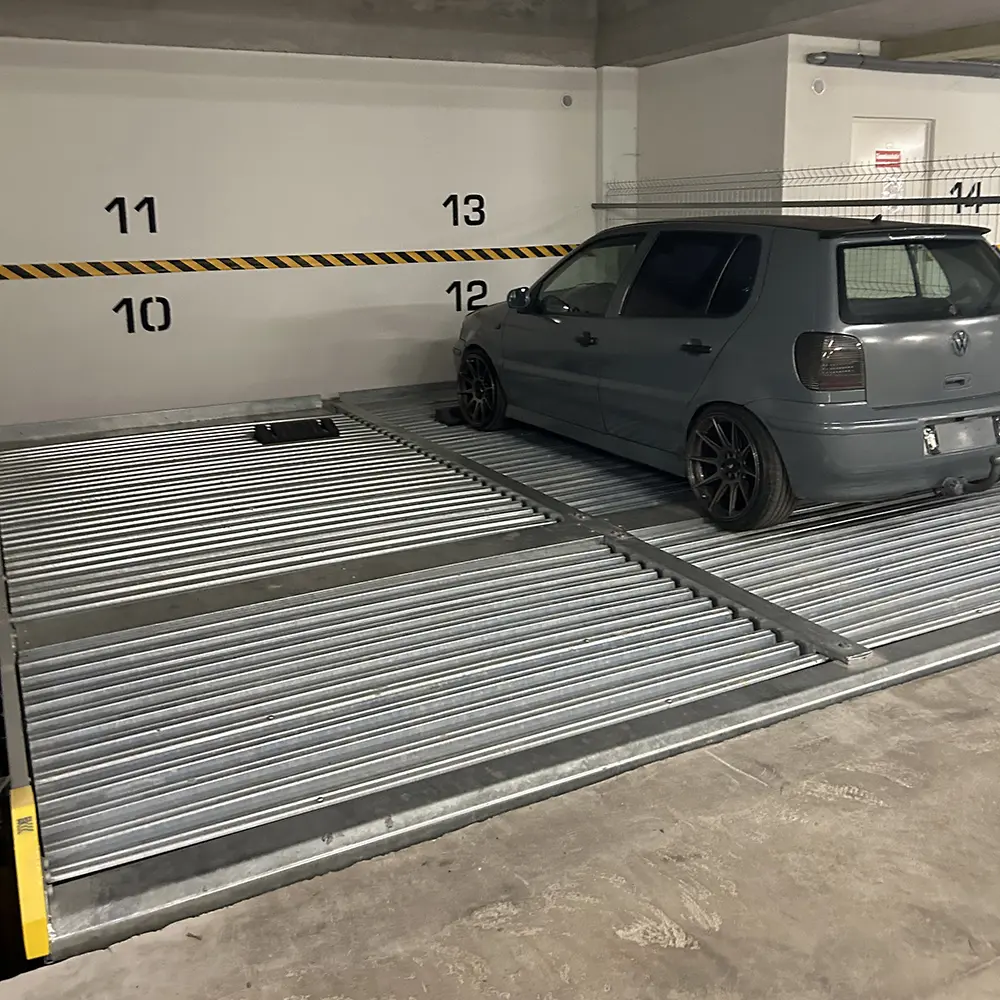

Pit-type systems are installed underground, leaving the ground area completely free for greening, driving lanes, or other functional spaces. It doubles parking capacity without expanding the above-ground footprint, making it ideal for space-constrained sites.

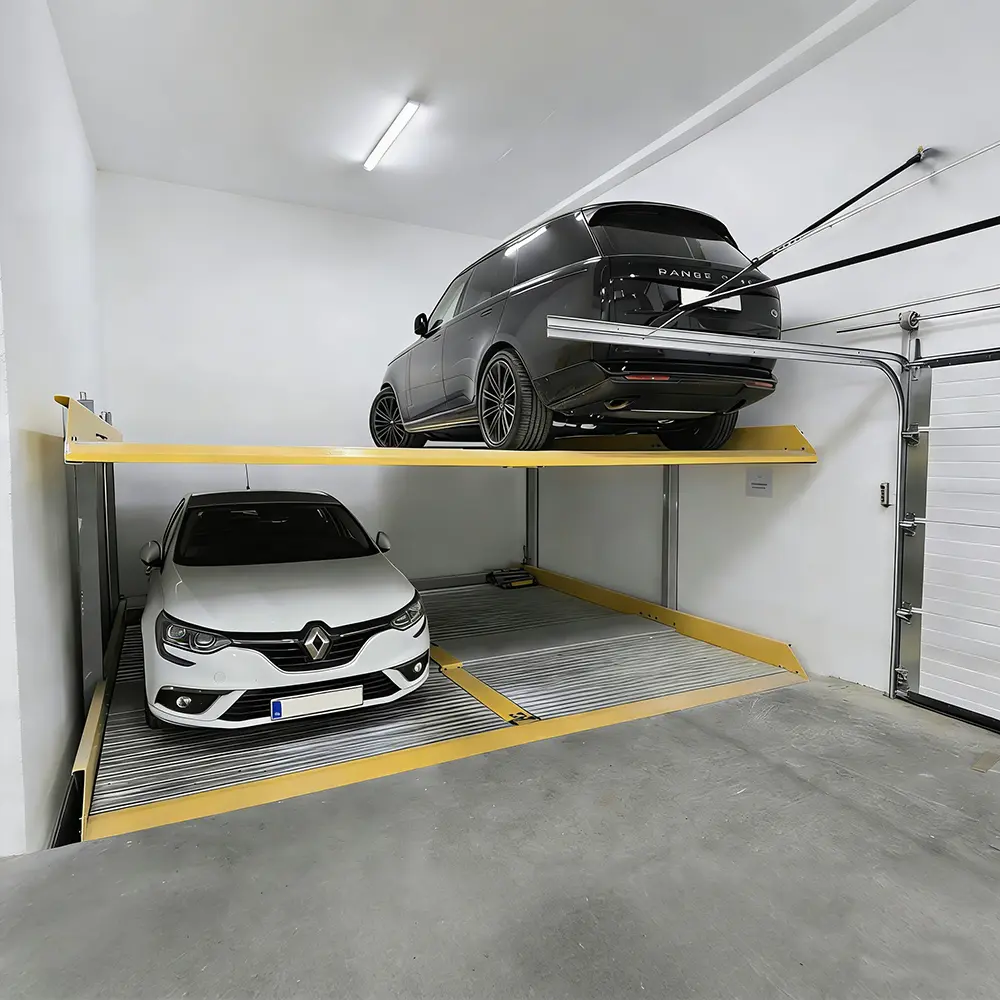

The equipment is recessed into the ground, aligning perfectly with the original ground level. It avoids obtrusive above-ground structures, preserving the aesthetic of residential areas, commercial buildings, and public spaces.

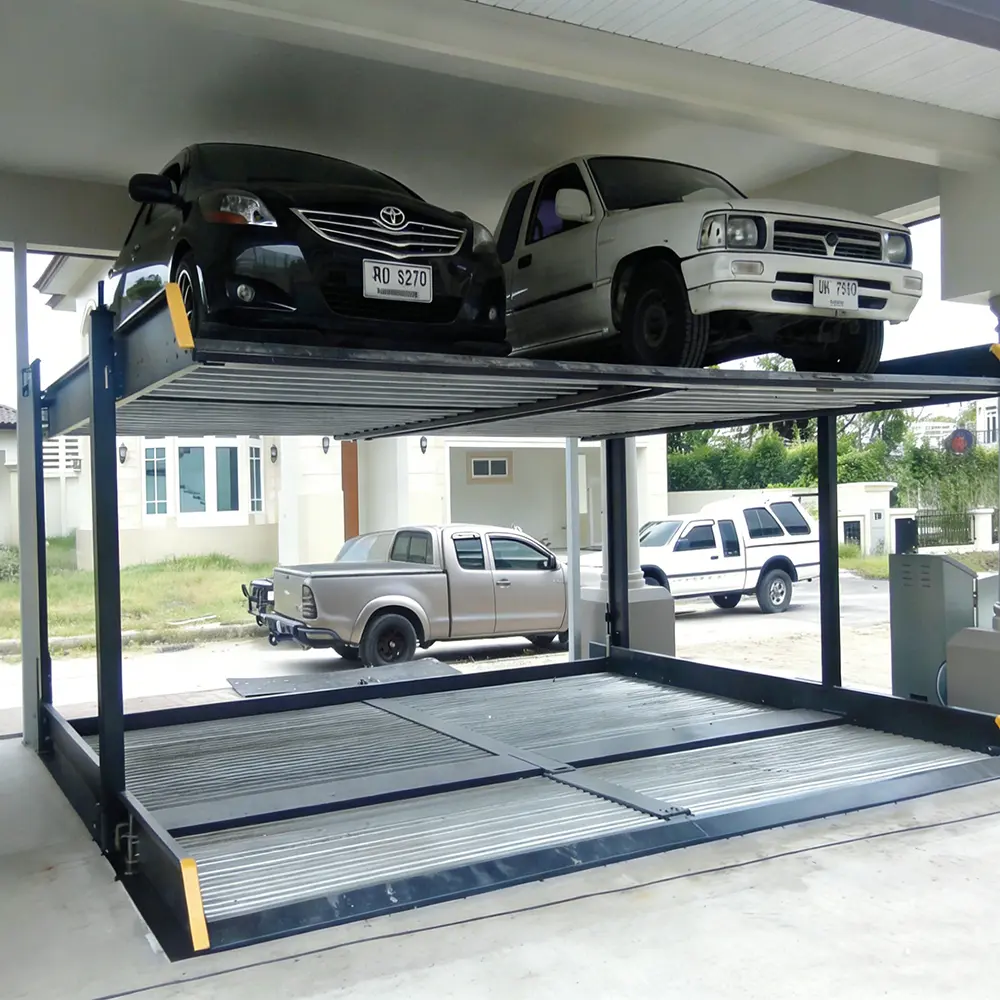

Upper-level vehicles can be accessed directly without moving lower-level cars. The horizontal access design ensures easy entry/exit, with no need for complex maneuvering, delivering a user-friendly experience for all drivers.
Vehicles parked in the pit are sheltered from rain, snow, UV damage, and extreme weather, reducing wear and tear. The enclosed structure also adds extra security against theft and accidental damage.
Most pit-type systems use gravity-driven descent, eliminating extra motor power consumption. The compact, recessed design also reduces wind load and structural stress, lowering long-term maintenance expenses.
Suitable for basements, new construction projects, and retrofitting existing parking lots. It works seamlessly in residential communities, shopping malls, office buildings, and public facilities, adapting to diverse site conditions.
The CPL-4 system has a total lifting capacity of 4000kgs, supporting a load-bearing capacity of up to 2000kg per vehicle, making it compatible with all common vehicle models.
No. All levels support horizontal access. When you intend to drive the vehicle parked on the upper level, there is no requirement to move the one positioned on the lower level, ensuring independent and convenient vehicle access.
The system can be installed in basements or pits. This flexibility allows it to maximize ground space utilization and integrate seamlessly with existing architecture without creating obtrusive above-ground structures.
The platform of the system descends using gravity alone without requiring any motor drive. This gravity-driven descent cuts operating costs and reduces electricity consumption.
The CPL-4 operates on a hydraulic drive system paired with chains (Hydraulic Drive + Chain) and is equipped with an electric lock release system for simple, safe, and reliable operations.
The system requires a power supply and motor capacity of 380V, 50Hz / 60Hz, 3Ph, 5.5Kw for stable operation.
